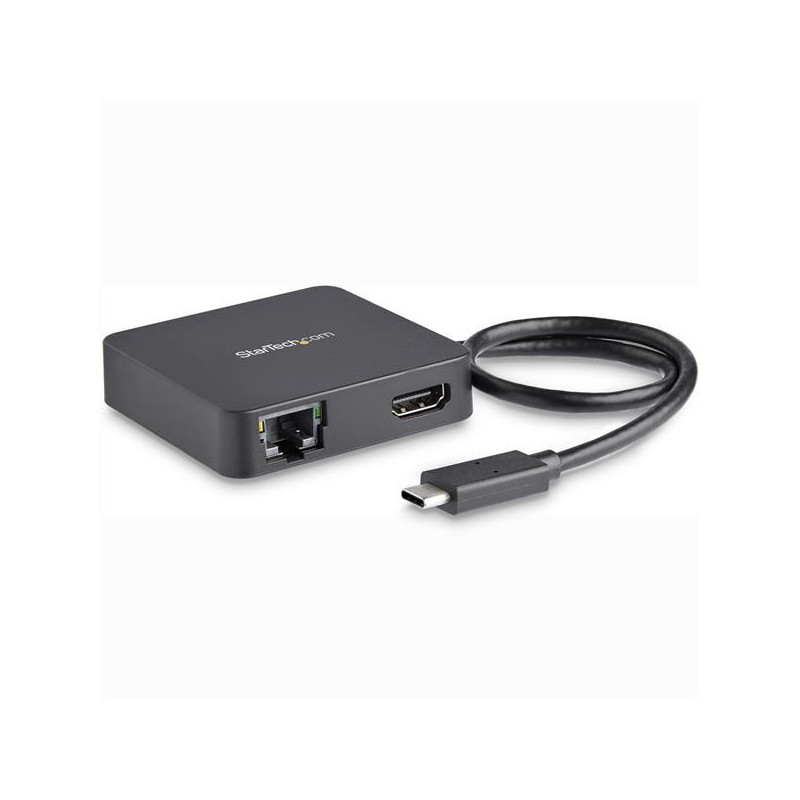

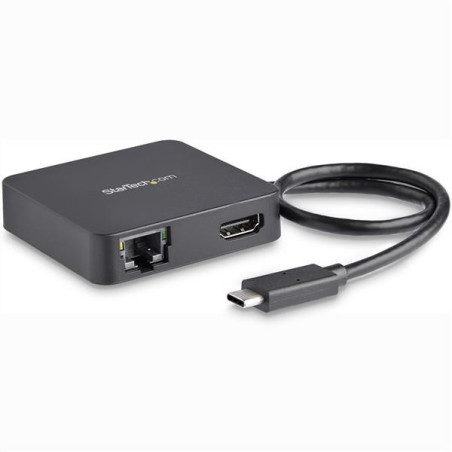

StarTech USB-C Multiport Adapter - With 4K HDMI GbE USB-C USB-A

This USB-C Multiport Adapter with HDMI combines the capability of three single-function adapters, a USB-C video adapter, USB-C to USB 3.0 adapter, and Gigabit Ethernet adapter, into a portable docking station for your laptop. You can connect a 4K HDMI display and two USB 3.0 devices (1x USB-A, 1x USB-C), and get high-speed network access, all through a single cable. The USB Type-C adapter is compatible with Thunderbolt 3 ports. Add a 4K UHD Monitor With HDMI output, this USB-C multiport adapter makes it easy to expand your virtual workspace onto an external 4K HDMI monitor. The adapter supports resolutions up to 4096 x 2160p (24Hz) or 3840 x 2160p (30Hz), as well as audio. Reliable Network Access The USB-C multiport adapter ensures a reliable wired network connection with a Gigabit Ethernet port, which is ideal for areas with limited Wi-Fi® access such as in classrooms, office buildings and hotels. Connect Your USB Devices Easily With two USB 3.0 ports (1x USB-A, 1x USB-C) you get access to traditional USB Type-A devices, as well as newer USB-C devices you add in the future.  Bring Productivity with You Wherever You Go With its compact design and bus-powered performance, the portable multiport adapter is easy to take with you anywhere you take your laptop. The adapter features a pre-attached USB-C cable, so you have one less cable to carry when youﾒre on the move. The StarTech.com Advantage for Docking Stations

• Maximum compatibility - StarTech.com has a docking station to fit every operating system, laptop brand, and connectivity need
• Get more done faster - More ports and more displays maximize end user connectivity and productivity
• Quick installation - eliminate deployment headaches that waste time and frustrate end users
• IT Grade quality - trusted by IT pros around the world for our rigorous in-house product testing, robust compliance, and lifetime multilingual technical support

The DKT30CHD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: Your USB-C equipped host laptop must support video (DP Alt Mode) to work with this adapter. The adapter does not support USB Power Delivery.

Hardware
Fast-Charge Port(s)	No
Packaging Information
Package Height	40 mm [1.6 in]
Package Length	21 cm [8.3 in]
Package Width	14.5 cm [5.7 in]
Shipping (Package) Weight	0.2 kg [0.4 lb]
Performance
Auto MDIX	Yes
Compatible Networks	10/100/1000 Mbps
Full Duplex Support	Yes
Maximum Data Transfer Rate	5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions	4096 x 2160p @ 24Hz or 3840 x 2160p (HDMI) @ 30Hz
Type and Rate	USB 3.0 - 5 Gbit/s
UASP Support	Yes
Physical Characteristics
Cable Length	340 mm [13.4 in]
Color	Black
Material	Plastic
Product Height	1.5 cm [0.6 in]
Product Length	65 mm [2.6 in]
Product Width	62 mm [2.4 in]
Weight of Product	52 g [1.8 oz]
Power
Power Source	USB-Powered
Software
OS Compatibility	Windowsﾮ 7, 8, 8.1, 10 Mac OS 10.10 to 10.15 Chrome OSﾙ
Special Notes / Requirements
Note	A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K).
	Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop USB-C port supports DP alt mode.
	The USB Type-C connector (female) is data only.
	USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
System and Cable Requirements	Host laptop with an available USB-C port (to ensure full functionality, the laptop's USB-C port must support DP alt mode).
What's in the Box
Included in Package	quick-start guide
	USB-C multiport adapter
Hardware
Displays Supported	1
Chipset ID	Genesys Logic - GL3523 Realtek - RTL8153 Parade - PS176
Bus Type	USB-C
4K Support	Yes
Environmental
Storage Temperature	-20ﾰC to 60ﾰC (-4ﾰF to 140ﾰF)
Operating Temperature	0ﾰC to 60ﾰC (32ﾰF to 140ﾰF)
Humidity	5~90% RH (Non-condensing)
Connector(s)
Connector Type(s)	USB Type-C (24 pin) USB 3.0 (5Gbps) Male
	USB Type-C (24 pin) USB 3.0 (5Gbps) Female
	USB Type-A (9 pin) USB 3.0 Female
	RJ-45 Female
	HDMI (19 pin) Female
